Products

The LM.NT range consists of four mixers, all of which benefit from the CE certification. From the « base » blender, the first step in the production of Nitrox to the « King » blender, with its proprietary software, either fixed or for expedition, each LM.NT product will provide you a solution to meet your objectives

With many years of R & D behind them, LM.NT blenders ensure a perfect safety. They mix and control the gas flow, before it is sucked by the compressor and compressed in cylinders. Thus, the oxygen and helium bottles are completely emptied. No loss, a lot of savings.

The system is completely transparent to air inflation. It requires very little maintenance and is suitable for all compressors from 100 to 850 liters / minute. It is also customizable to fit your exact needs, and it is also scalable : LM.NT allows you to upgrade your installation from the base to the Genius and King.

Whether for personal or professional solution, make the choice of safety and technology with LM.NT blenders

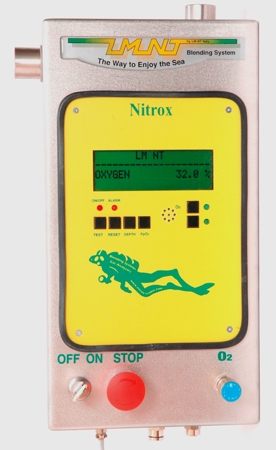

Genius Blender

  • Easy to install and use for Nitrox blending, with electronic control and proprietary software management.
  • 24v Power supply by the compressor or separated.
  • Diving simulation with the integrated software to find the best mix.
  • Visual and sound alarms.
  • Software sensor management.
  • Automatic disconnection in case of anomaly.
  • Detailed Genius operation
  • CE certification.

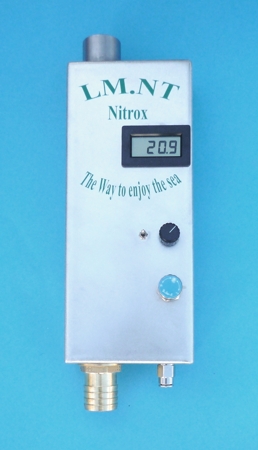

Base Blender

  • Direct Nitrox production up to 40%, with your compressor.
  • Easy to install and use.
  • Continuous filling.
  • Works with all compressors from 100 to 600L/min.
  • Optionnal security in case of compressor shut down
  • CE certification.

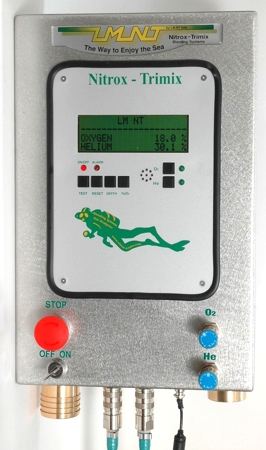

King Blender

  • Easy to install and use for Nitrox and Trimix blending, with electronic control and proprietary software management..
  • 24v Power supply by the compressor or separated.
  • Diving simulation with the integrated software to find the best mix.
  • Visual and sound alarms. (Hypoxia et hyperoxia)
  • Software sensor management.
  • Automatic disconnection in case of anomaly
  • Detailed King operation
  • CE certification

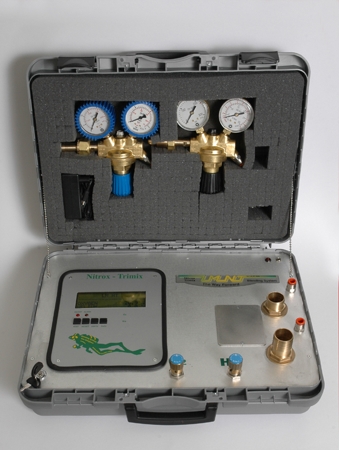

Expedition/Boat Blender

  • Nitrox and Trimix blending, same as the King, but portable version, or suitable for boat installation.
  • Automatic shut-off in option
  • CE certification

Boosters O2/He

  • Since 2014, Booster O2/He
  • All dimensions and pressure
  • Bespoke products
  • Please contact us

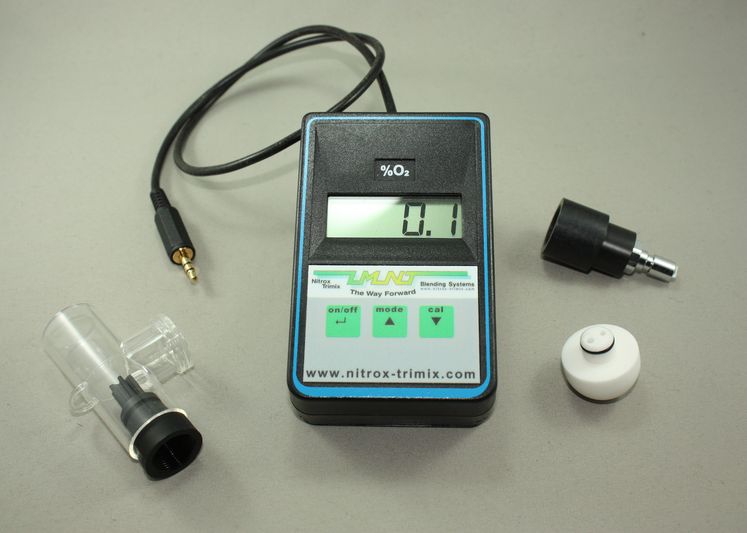

Oxygen analyser

  • Simple et reliable analyser for your mixes control
  • Oxygen concentration from 0.0…100.0% O2
  • Accuracy + 0.1% O2 +/- 1 Digit
  • Memory for min and max. values
  • Battery level alarm
  • Calibration according to atmospheric pressure

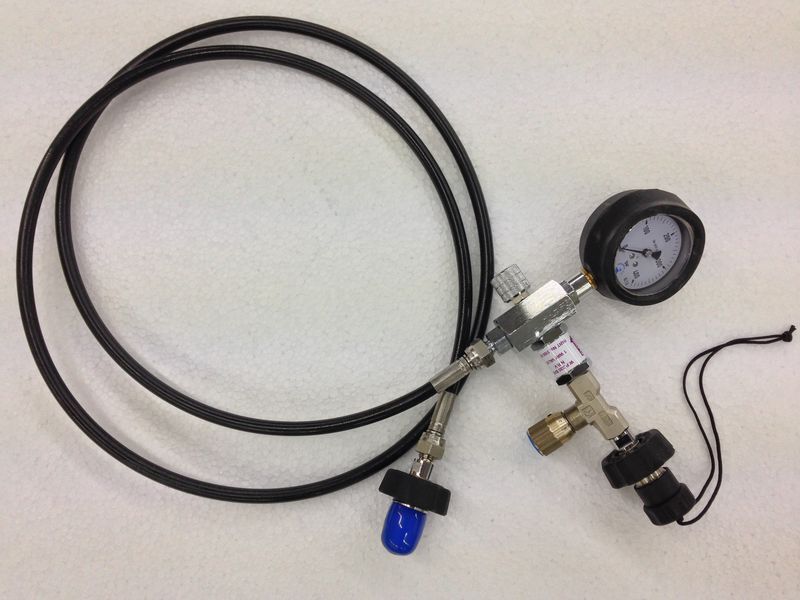

Blending whip

  • Everything your need for a perfect mix
  • DIN to both ends
  • 100mm class 1 manometer
  • Non return valve
  • Bleed screw
  • Needle valve

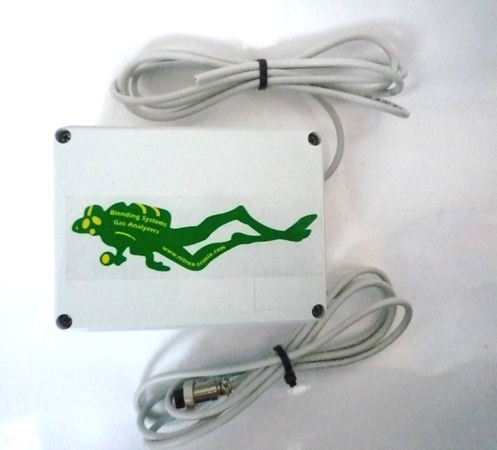

Double transformer

  • Double transformer 220v / 24v. necessary to compressors working with 110v. or 220v. power

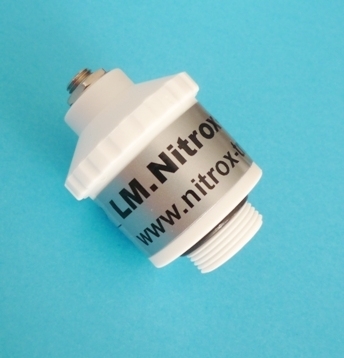

O2 Sensor

  • O2 medical sensor; electrical connector 3,5 mm, output signal 13 to 17 mV.
  • Suitable to diving analyzers

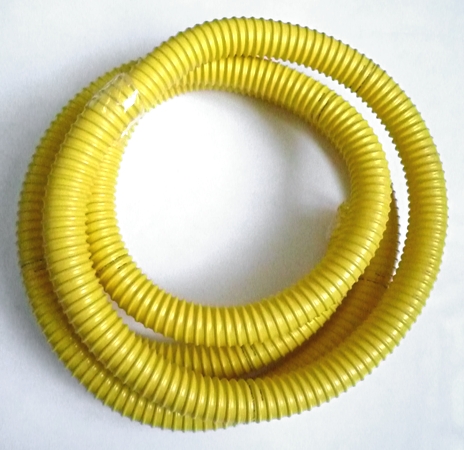

Hoses

  • Flexibles

O2 Pressure reductor

  • Essential to regulate the flow, in low pressure, of oxygen from the tank into the blender.

HE pressure reductor

  • Essential to regulate the flow, in low pressure, of helium from the tank into the blender.

Over pressure valves

  • Available for all compressors. Connection 1/4G

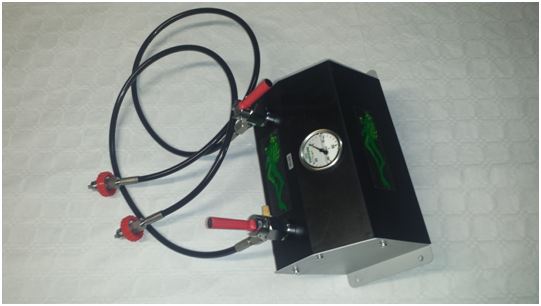

Pressure panels

  • 225 or 300 bar. Delivered with conections 2-4 or 6 conections – pressure mix possible

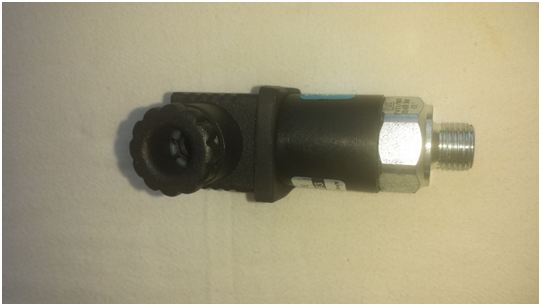

Pressostat for automatic stop

  • 300 bar adjustable stainless steel membrane pressostat for compressor stop.To be connected to the compressor relay. Can be set from 70 bar up to 300 bar

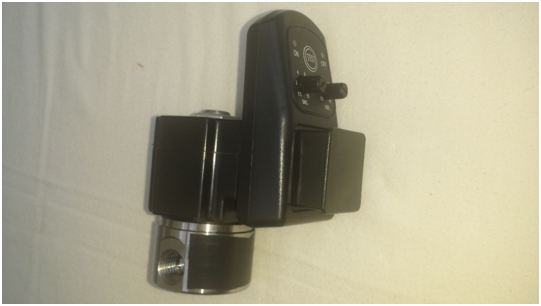

EM Valve

  • 300 Bar ¼ G stainless steel EM valve with double timer for automatic purge draining. IE: The valve opens 3 seconds every 10 minutes.

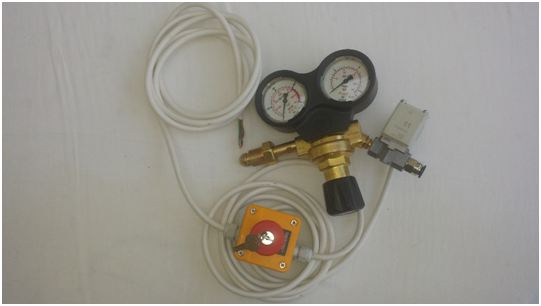

Security OXYGEN regulator

  • Security OXYGEN regulator with OXYGEN EM valve /push-pull 10 mm connection/emergency stop With key with integrated EM valve fuse protection. The EM valve must be supplied in the same time as the motor of the compressor. Regulator bottle fitting according to the country standard. EM valve 12 or 24 or 220 Volt ac Length of the cable upon request.

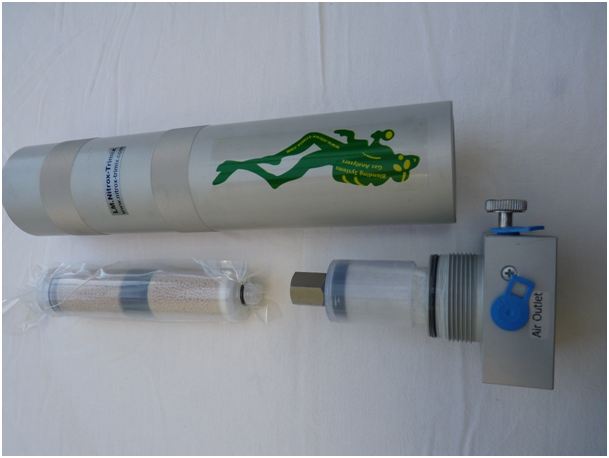

In line 300 bar filter for NITROX

  • In line 300 bar filter for NITROX filling. Possible to replace old compressor filter with it. Several sizes according the compressors.

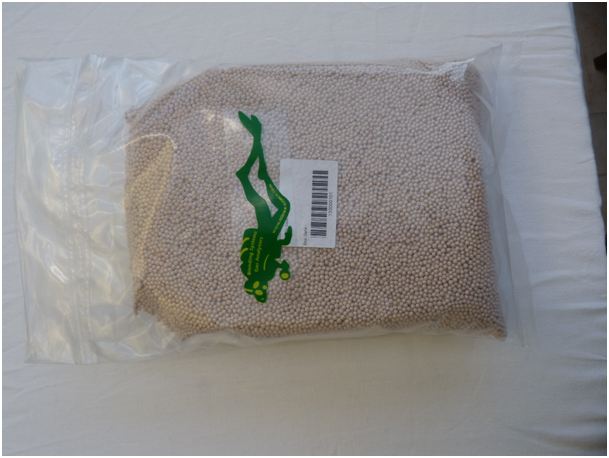

Activated carbon and molecular sieve

  • High quality Activated carbon and molecular sieves. Several sizes available

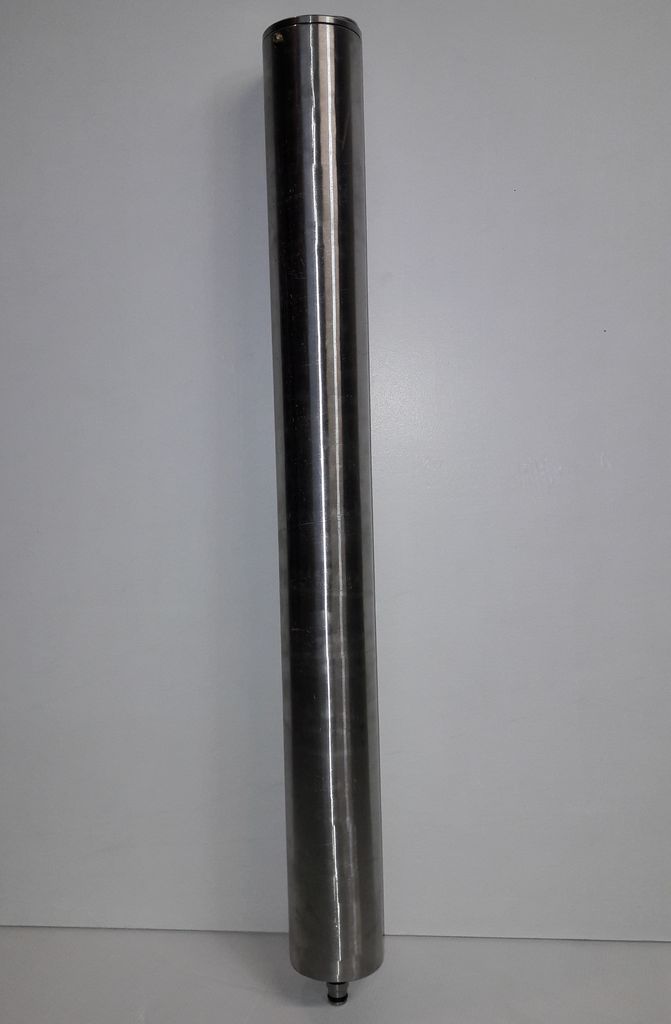

Rechargeable cartridge P21, P41, P61

  • Replacement and rechargeable cartridge for all compressors. Stainless steel construction.
